A026-Plus NMEA 2000 AIS Receiver with NMEA Multiplexer + N2K Converter + WiFi + GPS

A026-Plus NMEA 2000 AIS Receiver with NMEA Multiplexer + N2K Converter + WiFi + GPS

$374.28 ($311.90 excl. VAT)

The new A026+ is an incredibly versatile device with outstanding build quality. With countless functions working seamlessly this multifaceted AIS receiver is a must have for those looking for an easy and reliable WiFi enabled solution to complex marine networks.

AIS and GPS receiving capabilities
Up to 40 nautical miles receiving range
NMEA 2000 connection
1 x 0183 INPUT 1 x 0183 OUTPUT 1 x SeaTalk Input
WiFi capable
USB enabled
A fully integrated bi-directional data converter to allow your devices to communicate together with no delay/data lag.

In stock (can be backordered)

Description

The A026+ NMEA 2000 AIS Receiver is used by many commercial and retail sectors alike, including sports, leisure, fishing and vessel monitoring markets. This level of adaptability is due to not only the A026+’s solid metal enclosure and heavy duty S0239 connector but also because of its WiFi capabilities and its ease of use. The A026+ requires little to no configuration in most cases and can transmit all of your data to any WiFi enabled Android, iOS, Windows or Mac device allowing you to use navigational applications on the go.

This dynamic nature of the A026+ is what currently makes it one of the best smart solutions available on the marine market. The below chart highlights the significant functional differences between the entry-level devices and commercial grade A027+ and A026+:

Product	USB	WiFi	Ethernet	NMEA 2000	SeaTalk Converter	Maximum AIS range
A027+	One-way	One-way	Yes	One-way	Yes	40nm
A026+	Bi-directional	Bi-directional	No	Bi-directional	Yes	40nm
A024	One-way	One-way	No	No	No	15nm
A026	One-way	One-way	No	No	No	15nm
A027	One-way	One-way	No	No	Yes	15nm
A028	One-way	No	No	One-way	No	20nm

Features

Feature	Description
Dual AIS Receivers	Two independent receivers monitoring AIS channels simultaneously
Sensitivity	Up to -112 dBm @ 30% PER (up to 450% more sensitive than the A026)
Receiving Range	Up to 40 nautical miles
Protocol Conversion	SeaTalk1 to NMEA 0183 protocol converter
Output Options	NMEA 0183 message output via WiFi, USB, and NMEA 0183
Built-in GPS	Provides positional data
NMEA Multiplexing	Combines NMEA input with AIS + GPS sentences into a seamless data stream
NMEA 2000 Conversion	Converts combined NMEA 0183 data into NMEA 2000 PGNs
WiFi Connectivity	Internal access point connects up to 4 devices simultaneously
Plug & Play	Compatible with chart plotters and PCs
OS Compatibility	Windows, Mac, Linux, Android, iOS (initial configuration requires Windows)

Available to add to your order

VHF/AIS Antenna:

GPS Antenna:

AS04 entry-level GPS Antenna (SMA to TNC adapter needed)
AS14 Waterproof mushroom GPS, Galileo and Glonass Antenna (BNC to TNC adapter needed)

VHF Antenna Splitter:

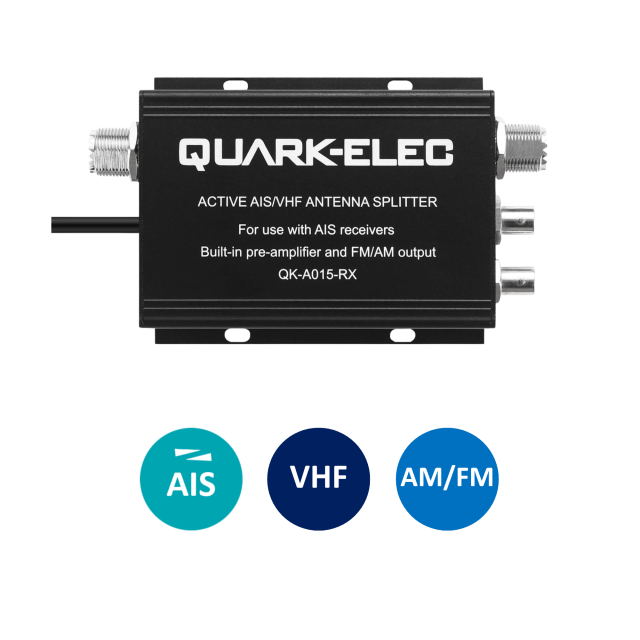

A015-RX Active VHF Splitter-for AIS receivers (only needed if planning to share a single VHF antenna between an AIS receiver and VHF radio)

Protocol Bridge:

AS03 NMEA Protocol Bridge (only needed if connecting to RS232 devices)

Downlaods

Document Type	Link
Set Up Guide
User Manual
Drivers
Firmware
Configuration Tool

What's in the box?

What’s included?

1 x -A026+
1 x USB cable
1 x 1m NMEA 2000 drop cable
1 x Setup Guidebook
1 x WiFi antenna

Connections

Connection	Specification
AIS Antenna Connector	Heavy-duty SO239 VHF connector for external antenna. Requires an active VHF antenna splitter (e.g., A015-RX) if sharing one VHF antenna with A026-Plus and VHF voice radio.
GPS Connector	TNC female bulkhead connector for external GPS antenna. Integrated GPS module provides positional data when a GPS antenna is connected.
WiFi Connector	SMA connector. Supports Ad-hoc and Station Modes on 802.11 b/g/n for WiFi output of all messages. WiFi can be disabled via standby mode.
USB Connector	Type-B USB connector (cable included). Connects directly to a PC USB port. Provides data input/output and is used for configuration and firmware updates.
NMEA 0183 Output Connectors	Allows connection to AIS-compatible equipment (wind, depth, heading sensors). Inputs can be multiplexed with AIS+GPS and output via NMEA 0183, WiFi, USB, and NMEA 2000 backbone.
NMEA 2000 Connector	Pre-fitted five-core screened cable with male micro-fit connector. Connect via T-piece to NMEA 2000 backbone. Backbone requires two termination resistors (one at each end).

AIS Receiver Comparison Guide

Compare NMEA Multiplexers

Product Videos

Unboxing

How to Configure

Compatible Applications

Name of APP	iPhone	Android	Mac	PC	Linux
Open CPN		✅	✅	✅	✅
Navionics	✅	✅
Seanav	✅		✅
Boat Beacon	✅	✅
SeaPilot	✅	✅
Belfield Chartplotter				✅	✅
iRegatta	✅	✅
iSailor	✅	✅
Marine Traffic	✅	✅	✅	✅
SEAiq	✅	✅	✅	✅
AIS Radar	✅
Imray Navigator	✅
iNavX	✅	✅
COAA Shiplotter			Parallels/Boot Camp	✅	Wine
NMEA remote app	✅
PCPLOTTER			Parallels/Boot Camp	✅
NavigationPLANNER			Parallels/Boot Camp	✅
